A non- load bearing, 82 mm thick metal stud partition up to a height of 3000 mm.

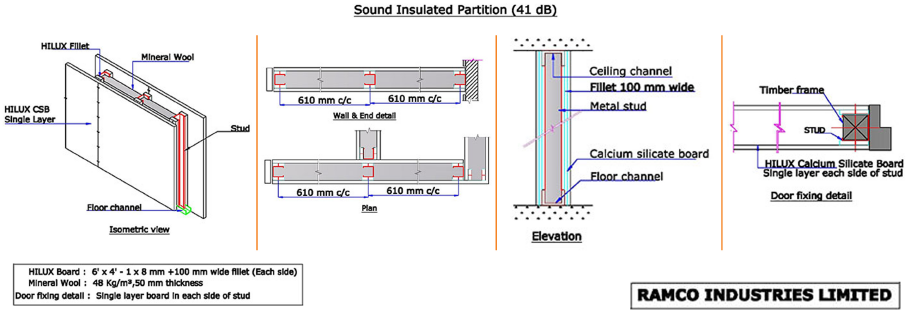

82 mm thick metal stud partition comprising of a composite framework which includes a 48 mm stud of 0.55 mm thick and having two unequal flanges of 34 and 36 mm each placed at 610 mm center to center in 50 mm floor and ceiling channel with two equal flanges of 32mm each fixed to floor and ceiling at 600mm center, with the help of nylon sleeves and wood screws. One layer of 10 mm thick Hilux board with 100 mm wide fillet are then screw fixed by 25 and 35 mm long self drilling and tapping screws having Phillips head with under head cutter, for first and second layer respectively, to the studs and channels on both sides of the frame work. The board’s joints are to be staggered to avoid through passage.
50 mm thick (Density - 48 Kg/m3) Ceramic wool mat is to be placed in the cavity of the partition before board fixing on the other side of the partition.
Finally edges of the facing boards are to be jointed and finished so as to have a seamless finish which includes filling and finishing with specially formulated jointing compound and self-adhesive fibre tape. Cement Primer (Oil based) to be provided on entire surface before putty/painting
Acoustic sealant is provided on the perimeter of the partition and also with any type of opening like doors, windows etc. A Horizontal Intermediate channel is to be provided for every 3 feet level on both sides, if the partition height exceeds the board length to provide edge support to the board.
|1.||Hilux board||6’ x 4’ – 08 mm||118 Nos.|
|2.||Floor & ceiling channels||0.55 x 50 x 32 x 32 x 3660 mm||18 Nos.|
|3.||Steel stud||0.55 x 48 x 48 x50 x 2440 mm||45 Nos.|
|4.||Intermediate channel||0.9 x 45 x 15 x 15 x 3660 mm||55 Nos.|
|5.||Self drilling & tapping screws||25 & 35 mm long||840 Nos. & 2700 Nos.|
|6.||Ceramic Wool||50 mm thick x 48 Kg/ m3||100 m2|
|7.||Jointing compound||20 Kg||6 Bags|
|8.||Self-adhesive fibre tape||48 mm wide||4 Rolls|
